*Cage compatible with LUMIX XLR1 and XLR2 (must remove cable holder on bottom of XLR2). Top Handle must be removed.

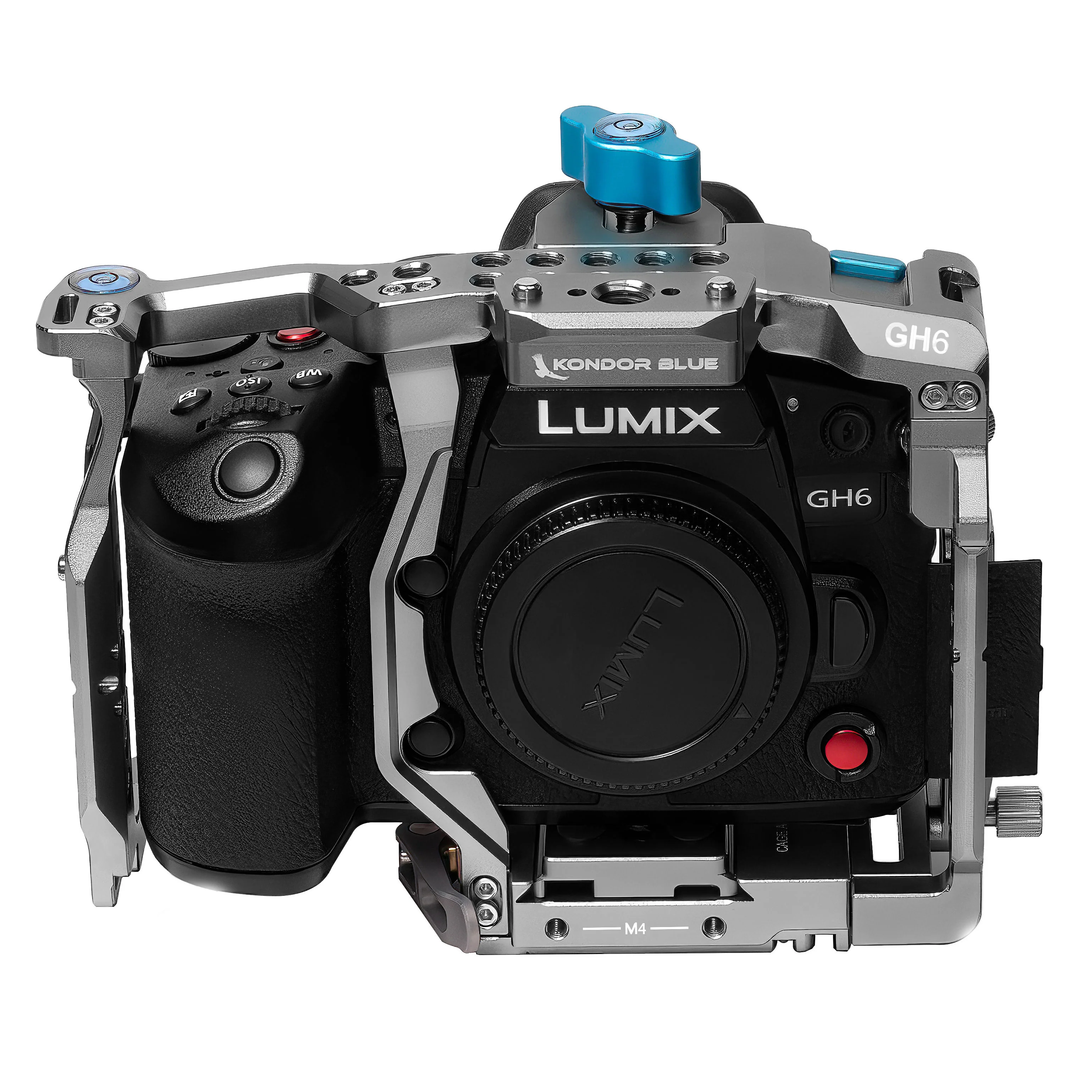

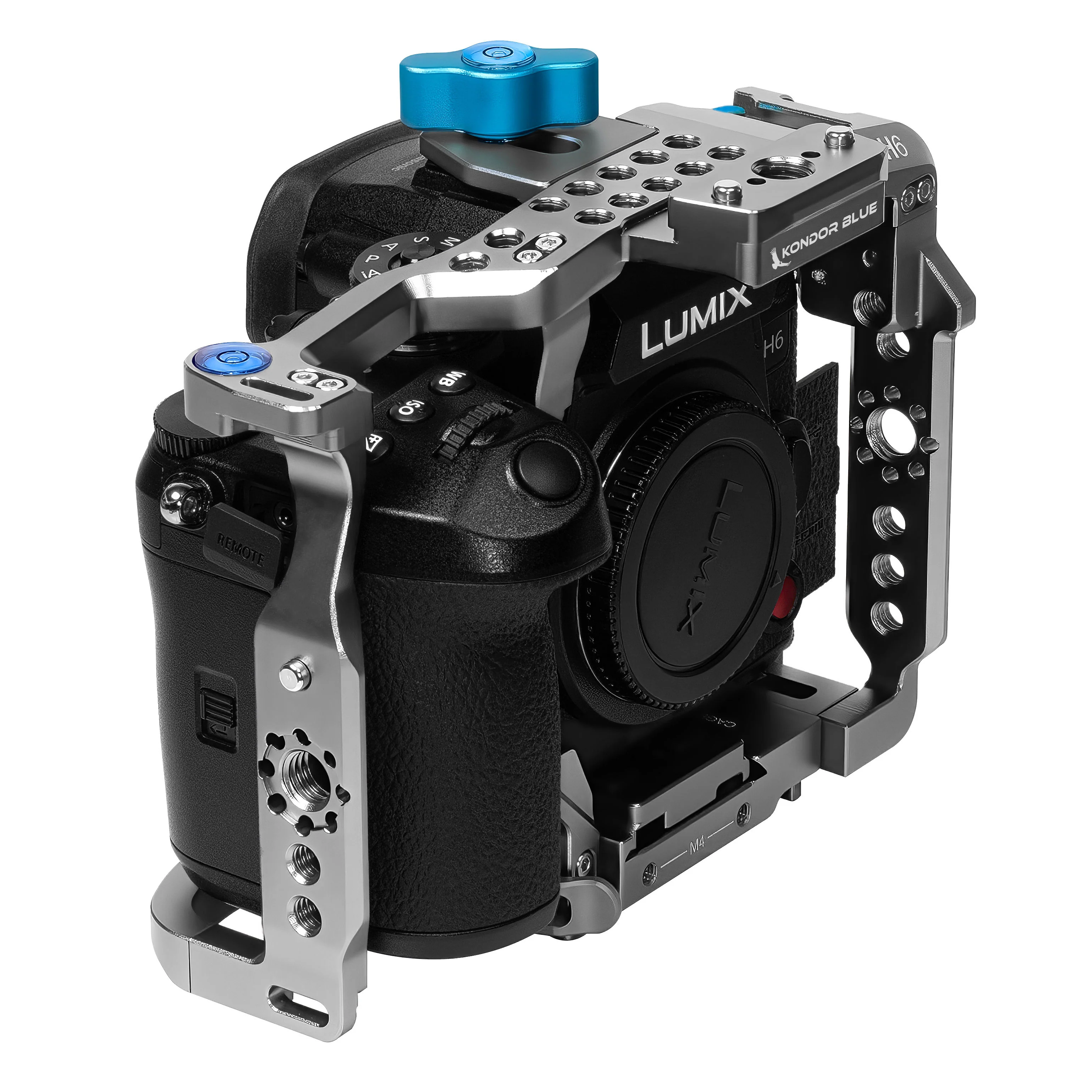

The Panasonic LUMIX GH7/GH6 camera cage is built for versatility and ease of use for productions of any size. The GH7/GH6 camera cage comes loaded with industry-standard mounting points including NATO rail, Arri mounts, and ¼ 20s. All of the cage assembly tools are integrated seamlessly into the cage body. To top it all off, we’ve included our signature bubble level in the Top Plate to make finding your horizon line fast and simple.

The Panasonic LUMIX GH7/GH6 Camera Cage Features:

Full-Wrap Cage w/ Arca QR System: Enjoy the rigging opportunities and protection of a complete cage with the flexibility to remove the camera for photography or gimbal work quickly
Built-in NATO rails: Quickly & securely mount accessories to the RIGHT SIDE, LEFT SIDE, and TOP PLATE.
Cold Shoe Safety Pin: prevent the notorious sliding issues that plague cold shoe accessories.
HDMI & USB C Cable Clamp: prevent damaging the micro-sized ports on the camera and losing signal.
Multiple Points of Contact: Cage remains solidly mounted to the camera to prevent wiggle and allow for large setups using our M2.5 toolless thumbscrew for the LEFT SIDE eyelet and our Cold Shoe Bubble Level.
Built-in Tools & Bubble Level: 2mm & 2.5mm tools necessary for cage assembly and adjustment of the Arca plate are magnetically attached to the Base Plate
Over 30 Threaded Holes: ¼ and ⅜ and M4
Easy Accessibility for Buttons, Dials, Cable Ports, and Battery/Card Doors.
Designed to protect the camera from the most common drop angles. Strategically placed Mid-Rail for additional support for larger rig built-outs.
Perfect Balance: Designed to maintain the ideal center of gravity with most lens sizes for effortless maneuverability from the top handle
Wide strap loops for a side grip strap and/or a camera strap

Weight/Dimensions:

400 gm/14.1 oz
154mm (6.0”) x 132mm (5.2”) x 78mm (3.0”)

Top Handle Features:

Start/Stop Record Button. Supports both Sony LANC and Panasonic Protocols providing Compatibility for most cameras such as Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, etc.
Five 3/8" threaded holes with ARRI Locator Pins for Anti-twist Accessories such as our Mini Quick Release Plates
Over Eighteen 1/4" hole options for mounting accessories
15mm Side Rod Support for EVF or Monitors
Cold Shoe mounts on each end of the Handle
Mounted via NATO Rail and can also slide on to both Left and Right Sides of Cage
Comfortable and sleek Grip Design

*Cage does not include Body Cap.

Weight/Dimensions:

6 oz
5" x 3" x 1"

Panasonic LUMIX GH7/GH6 Base Rig MKII Setup Consists Of:

August 2022

Panasonic LUMIX GH7/GH6 Cage
