Key Features:

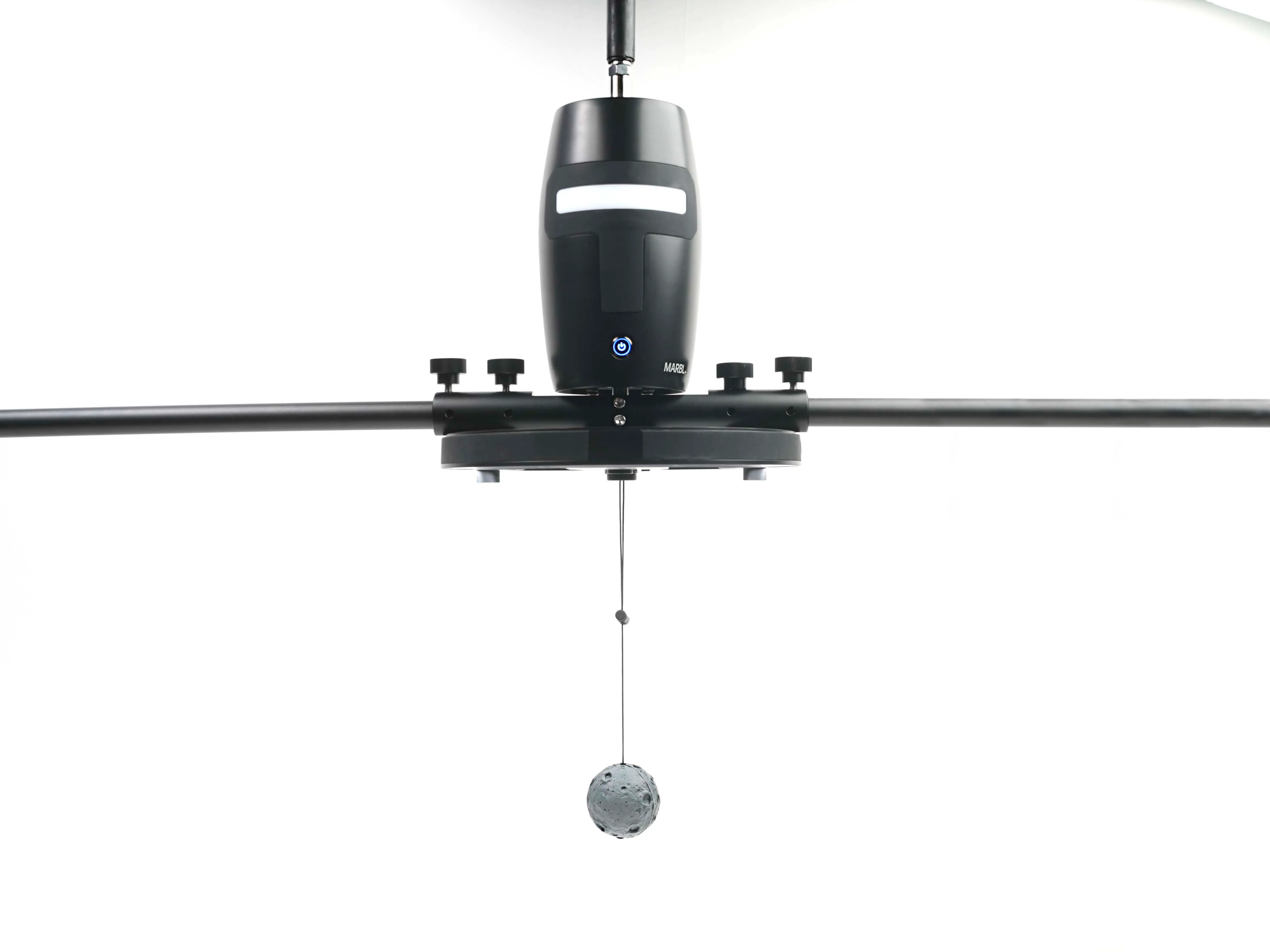

Ceiling-mounted 360-degree rotating camera rig system
Counter-weighted motor-controlled orbiting system delivers repeatable precision parallax
Remote controlled (IR or Wi-Fi app)
Includes motor mountable ring light with subject centering aids (laser crosshair, moon ball)
Speed adjustable from 1 Rotation every 48 Hours up to 10 RPM
Adjustable modes: product, interview, time-lapse, and stop-motion
Supports up to a 10 Lb camera (extra counterweights required)
Multi-arm length configurations with articulating joints
Operating volume 45 dB
“Stealth Mode” Reduces operating volume to 32dB (requires included IR remote)
3 Lbs counterweights included
Minimum overhead space required to operate is 8ft

The MARBL Orbit Pro 360-degree rotating camera rig system is backed by a limited warranty that covers craftsmanship, parts, and service. View full warranty details HERE.

Create smooth 360˚ video around subjects large or small with a touch of a button using the Orbit camera dolly system from MARBL. Simply mount the system to the ceiling, center your subject underneath, set focus and hit start. Use the Wi-Fi app or included IR remote control to activate wiper motions, change orbit speeds, time-lapse, and stop-motion. Included CRI 97+ LED ring light mounts directly to Orbit and features centering tools to help you film subjects or yourself. The Marbl Orbit Pro has all the features of the Studio Kit and bundles in 3 extra counterweights, a D-Tap cable, a V-mount adaptor, an extra collar, 3 custom speed rail adaptors and a handy travel bag.

WHAT'S IN THE BOX

1 x Axibo Powered Stealth Motor

Internal 6700mAh battery with up to 8 hour run time.
IR Remote Controlled “stealth mode” optimizes motor for dead quiet operation under 3RPM.

1 x Ceiling Plate with hardware assembly. Mounts into Studs/ joists, or cement ceilings. Includes screws.

1 x Telescoping Down Rod. Attaches to ceiling Plate and to Orbit Motor with an adjustable height of 27” - 46”. Ideal use for ceilings 8-12’

2 x Kondor Blue Arm Joints. Anodized 6160-t6 aluminum, with ARRI Rosette steel teeth.

4 x Anodized Black aluminum arm poles. (2) 24” and (2) 16 inch. Total span across when assembled 94”. Can be stacked to create a 72” super camera arm.

2 x Threaded End Caps with 1/4-20 mounting for accessories or counterweights. Caps thread into arm poles.

1 x Dual Arm Receiver. Includes bubble level for proper weight distribution.

6 x 1 lb Counterweights. 1/4-20 threaded, stainless steel construction.

1 x Ball Head to Cold Shoe Mount. Fits normal DSLR or Mirrorless cameras such as Sony, Canon, Panasonic.

1 x 1/4-20 to Cold Shoe Mount. Mounts to any camera with 1/4-20 mount and creates a quick release cold shoe.

(1) Bar Sleeve. 1/4-20 mount, attaches to ball head and camera.

(2) Hook and loop wall anchors for leveling down rod.

(2) 1/4-20 threaded loops. Used for attaching ratchet straps and straightening down rod, (if needed).

(2) Ratchet straps. 75 LBS max payload.

(1) Aluminum IR Remote control + Wi-Fi App

(1) Studio Ring Light:

-5600k Daylight LEDS.

-Diffused and dimmable, CRI 97+ LEDS. Good on products and Skin tones.

- Laser guide for finding perfect center of orbit.

-(1) Magnetic Focus Ball. Pull focus for yourself or use to set exposure with near 18% gray moon ball.

-Internal 6700 mAh battery bank. USB-C quick charge or reverse charge to use as battery bank.

-7 hour battery life @ 50% brightness. 3.5 hour battery life @ 50% brightness.

- 32 Step encoder for brightness, 5 step remote brightness.

-Tool holder + Magnetic remote holder

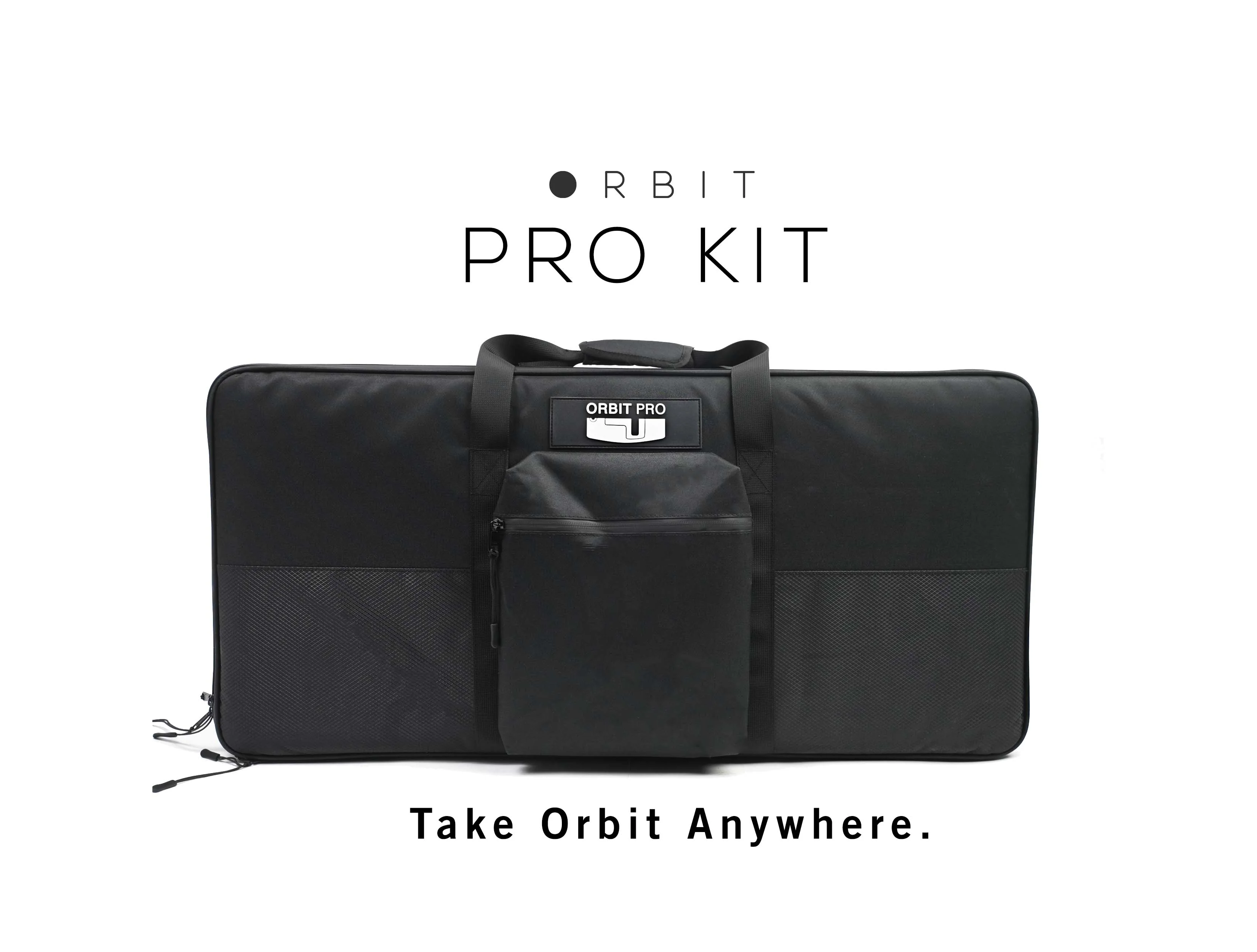

1 x Pro Bag. Durable, travel safe padded bag.

1 x Outdoor bracket for Speedrail. Attaches to Light stand and USA schedule 40 1-1/4'“ Speedrail with OD 1.66. *

1 x Dual ball head to 1/4-20 thread.

1 x Dual collar sleeve. Slide on the bar and attach additional camera, accessories, or counterweights.

2 x Hook and loop wall anchors for leveling down rod.

2 x 1/4-20 threaded loops. Used for attaching ratchet straps and straightening down rod, (if needed).

2 x Ratchet straps. 75 LBS max payload.

1 x V-mount Bar clamp and quick release. Attach a V-mount battery as a counterweight or to charge Orbit Motor or Light Ring.

1 x 10ft D-tap to D-tap Extension cable. Run the battery cable from one side to the other, using the battery as counterweight. *

1 x D-tap to 12V power cable. Charge to Orbit Motor or Light Ring while you shoot, with this cable. *

OPERATING MODES & FUNCTIONS

Orbit has 4 adjustable modes that deliver robot like precision and buttery smooth motion.

Mode 1: Product: Add 360 degrees of depth and dimension to your product shots. Control direction and speed from ½ RPM to 10RPM.

Mode 2: Interview: Enhance interviews, vlogs, Youtube reviews, podcasts and more with super slow cinematic motion. Operating speed range- 1/30 RPM - 10 RPM.

Mode 3: Time Lapse Mode: Orbiting Time lapses are next level. You can capture your DIY projects, objects, plants growing and more. Speed settings are pre-programmed up to 1 rotation per 48Hrs.

Mode 4: Stop Motion: Blow minds with Orbiting animation. Orbit only moves by .5,1,2,5,10, or 15 degrees every time you command it to.
